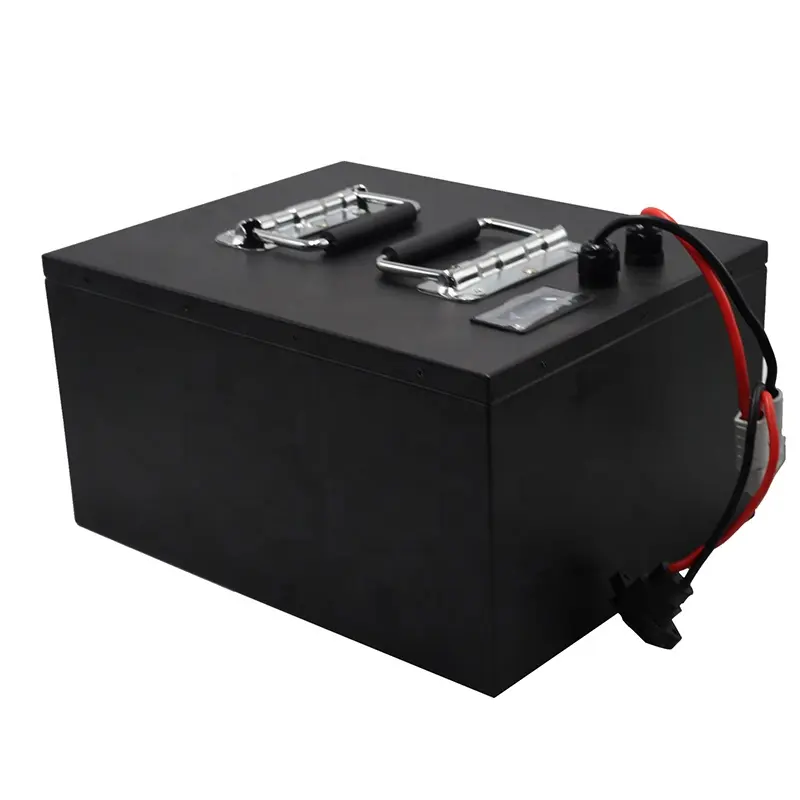

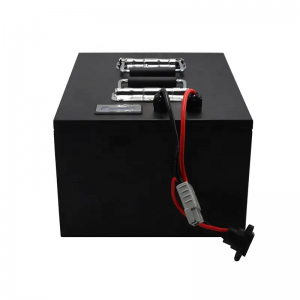

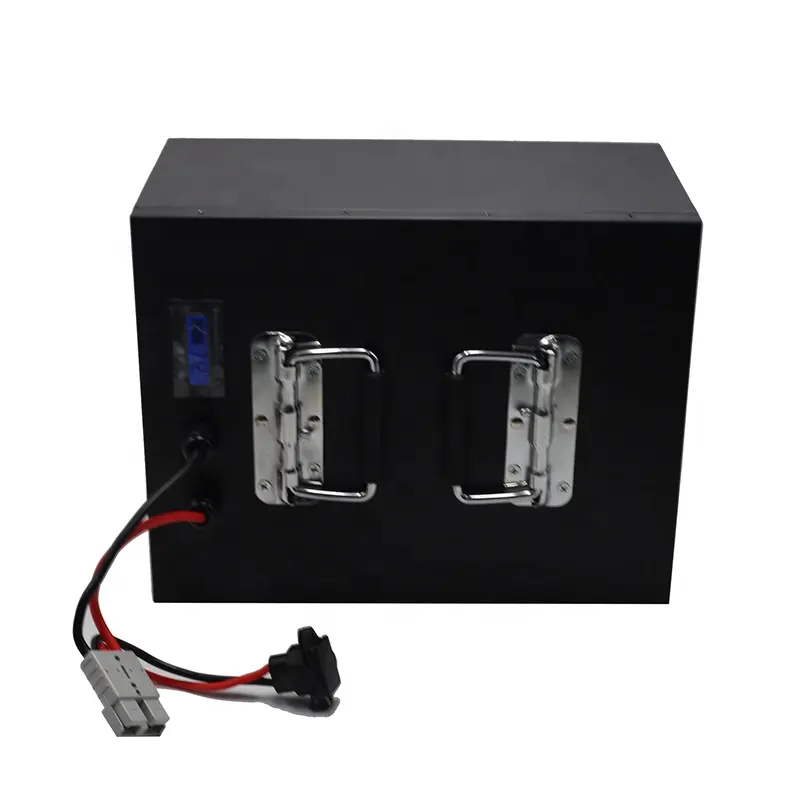

EV 자동차용 맞춤형 LiFePO4 배터리 팩 72v 60ah 전기 자동차 배터리 리튬 이온 팩

2023-06-06 02:13

사양

상표명	올인원
모델	AIN7260
보증	5 년
공칭 전압	76.8V
공칭 용량	[email protected]/customize
에너지	4416Wh
내부 저항	≤50mΩ
주기 생활	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
자기 방전	25 ℃에서 월별 ≤3.5 %
최대 충전 전압	87.6 V
충전 모드	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
충전 전류	30A
최대 충전 전류	60A
방전 전류	30A
Max. discharge Continuous Current	60A
Max.Pulse 전류	120A(<3S）
컷오프 전압 방전	60V
충전 온도	0 ℃ ~ 45 ℃ (32 ℉ ~ 113 ℉) @ 60 ± 25 % 상대 습도
방전 온도	-20 ℃ ~ 60 ℃ (-4 ℉ ~ 140 ℉) @ 60 ± 25 % 상대 습도
보관 온도	0 ℃ ~ 45 ℃ (32 ℉ ~ 113 ℉) @ 60 ± 25 % 상대 습도
물 먼지 저항	IP55
셀 및 형식	LFP  60AH 24S1P/customize
포장	Metal Case
차원 (L * W * H * TH)	커스터마이즈
무게	50kg
단말기	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
충전 방법	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
증명서	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

조언

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

신청

우리 공장

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

포장 및 배송

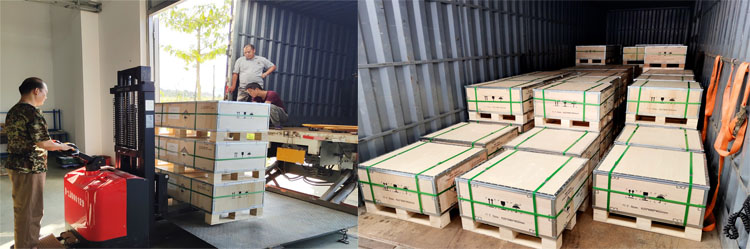

포장

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

배송

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



자주하는 질문

Q : 어떻게 지불해야합니까? 어떤 지불 방식을 수락합니까?
A: T/T, PayPal, Western Union.

Q : 샘플 주문이 허용됩니까?
A : 예, 대부분의 배터리의 경우 품질 테스트를위한 샘플 주문이 합리적이고 수용 가능합니다.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. 배터리 팽창/용접, 보호 기능이 없는 배터리 팩 등으로 인한 손상의 경우 충전으로 인해 BMS가 발생합니다.
