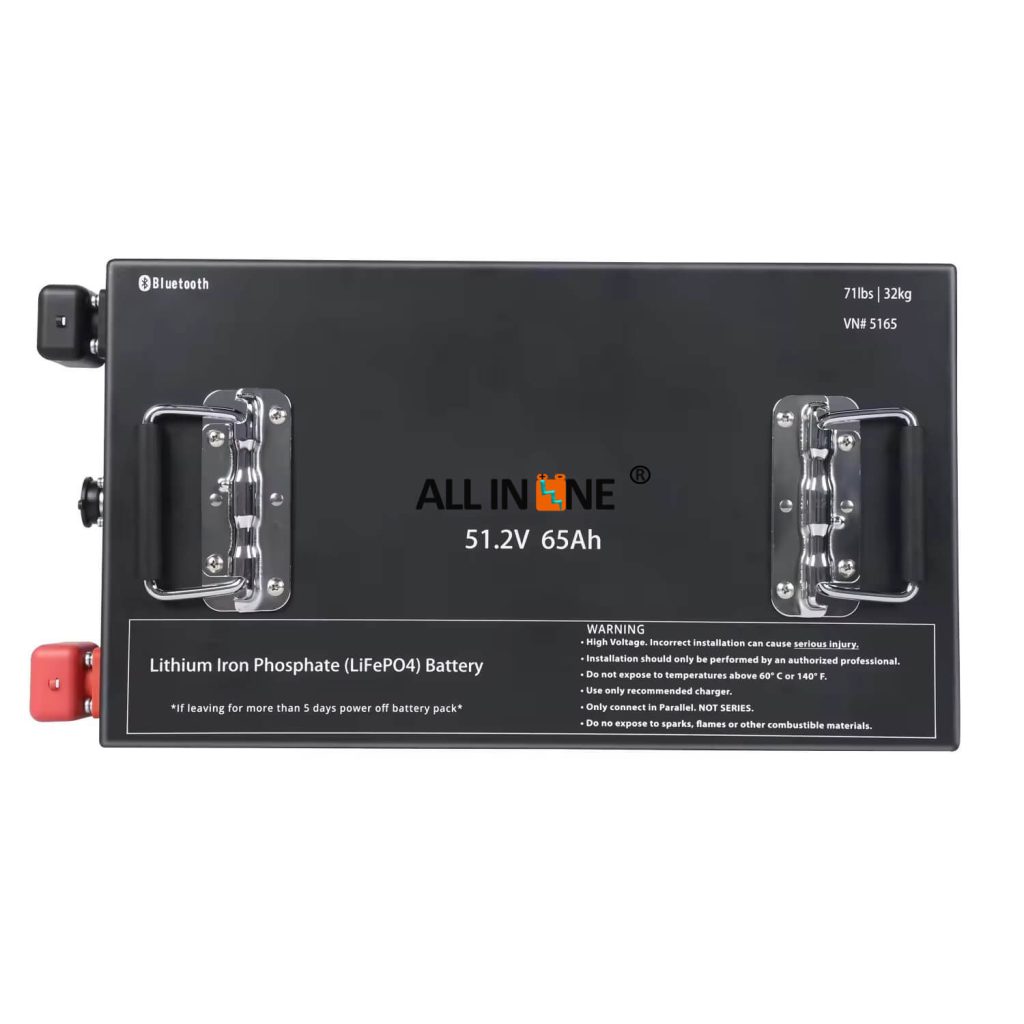

51.2v 65Ah golf cart lifepo4 lithium ion battery pack deep cycle IP67

2024-06-28 03:25

사양

모델	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
공칭 전압	51.2V	51.2V	51.2V	51.2V	76.8V
공칭 용량	105Ah	105Ah	65Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87.6V
최대 충전 전류	100A	100A	60A	150A	100A
최대 연속 방전 전류	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
방전 차단 전압	43.2V	43.2V	43.2V	43.2V	43.2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
충전 온도	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
방전 온도	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃	-20 ~ + 60 ℃
Cycle Life (25℃, 0.5C, 100% DOD)	>6000	>6000	>6000	>6000	>6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
보호 수준	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
무게	48.3kg	49kg	32kg	71kg	72.8kg
Communication Protocol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



주요 특징들

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

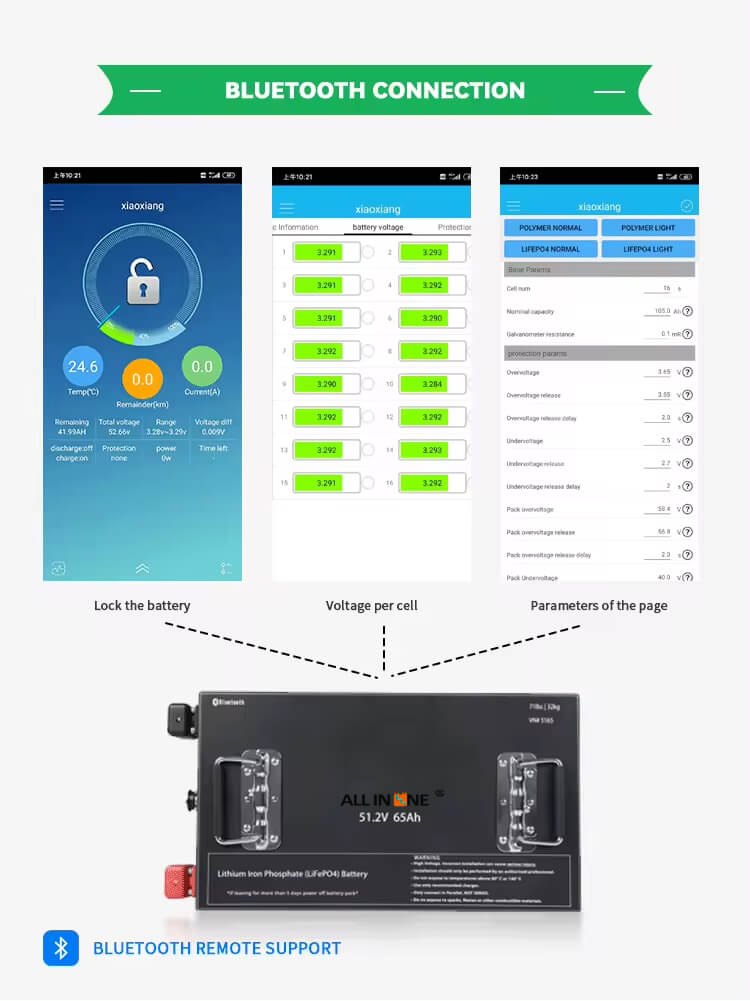

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

우리는 약속합니다
1. 모든 제품은 100% 테스트 제품에 품질 문제가 없는지 확인하기 위해 선적하기 전에.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



신청

우리 공장

포장 및 배송

자주하는 질문

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

Q2 : 판매 후 서비스를 제공합니까?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 귀사의 장점은 무엇입니까?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

Q4 : 당신은 OEM / ODM를 받아들입니까?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5 : 일반적으로 샘플에 대한 계약금 및 확인 후 다른 항목에 따라 약 25-30 일.

Q6:Are your battery real capacity?
A6 : A 등급, 100 % 신규 및 실제 용량의 모든 배터리 셀.

Q7 : 당신은 공장 또는 무역 회사입니까?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q8 : 어떤 종류의 인증서가 있습니까?
A8 : 주문 수량이 큰 경우 CE, ROHS, FCC, IEC62133, MSDS, UN38.3을 제공 할 수 있습니다.
